Click to see
reference design - IttiamTM THYME
SC2000 Smart Kit

Preferred by top class branding companies

User friendly RDK

Ultra low power

Open platform for video algorithms

Scenario

・Camera for sport/surveillance/AR/VR/wearable app. ・Camera for sport/surveillance/AR/VR/wearable app.
・Machine vision ・Machine vision
・Medical image ・Medical image
・Intelligent video conference system ・Intelligent video conference system

SC2000 Smart Kit Provides

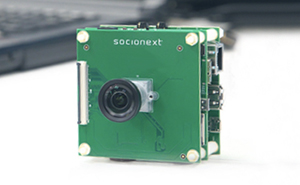

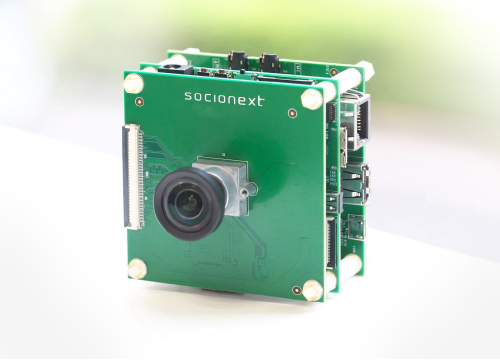

SC2000 Smart Kit
SC2000 Smart Kit

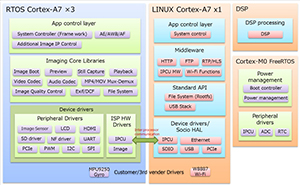

SDK
SDK

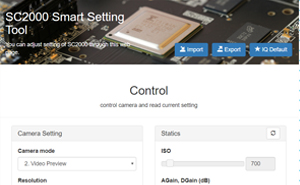

Smart setting tool
Smart setting tool

SC2000 Smart Kit Specification

Specification

  • Chip
    Socionext SC2000 SoC
  • Core Architecture
    Quad-core ARM Cortex-A7
  • CPU
    450-658MHz
  • Memory
    2GByte LPDDR3
  • NAND Flash Memory
    4Gb
  • Operation System
    Linux 4.4.15 based
  • Image Sensor
    SONY 12MPixel CMOS Sensor
  • Lens
    Horizontal FOV 84°
  • Wi-Fi
    IEEE 802.11ac compliant
  • Gyro Sensor
    3-Axis Gyro/Accele Sensor
  • Operation Interface
    x4 Push Button
  • Dimensions
    70mm x 70mm (Stacked 3 Boards)
  • Power Supply
    12V 2A AC adapter

Camera Functions

  • Mode
    Video Recording, Single Capture,Multi Shot(Burst/Time Lapse), Playback
  • Video
    3840 x 2160p30 (Media) + 1080p(WiFi) + 480p30(Media)
  • Sound
    PCM, AAC-LC(Need License)
  • Image Output
    USB(UVC), Ethernet/Wi-Fi(RTP), HDMI(rev 2.0), SD Card
  • Adjustable IP
    AE, AWB, EIS, 3DNR
  • Image Settings
    ISO, AE Metering, Exposure Control, Flicker, White Balance
  • Tool
    Camera Setting/Image Tuning Tool
  • USB
    MTP, CDC, UVC

Interface/Connectors

  • HDMI
    micro plug
  • USB 3.0
    micro-B connector
  • USB 2.0
    micro-B connector, type-A connector
  • LCD Connector
    X-pin DSI flat flex cable connector
  • Memory Card Slot
    micro SDIO x 2
  • Ethernet
    1000 BaseT Ethernet socket
  • Audio
    Line In/Out, PDM Mic

Dubug Connectors

  • Mode Selector
    8-pin Dip Switch
  • ICE Connector
    20-pin SWD ICE connector,20-pin JTAG ICE connector
  • UART Interface
    x3 USB micro-B connector
  • User Interface
    Rotary Switch, Joy Stich

Smart Kit Deliverables Detail

Hardware

  • Item
    Description
    Deliverable form
    Deliverables
    Standard
    Smart Board
    Board size : less than 70mm x 70mm,Sensor board, Main(M10V) board, I/F board
    -
    Deliverables Board*1
    standard

Software

  • Item
    Description
    Deliverable form
    Deliverables
    Standard
    SDK
    • Linux BSP
    • Middleware / Framework / Reference Application
    • Linux software development environment
    • Camera & System controller

    ※ Excluded Linux kernel & Open software & Wi-Fi certification Service

    Source / Object code
    Deliverables SDK Software
    standard Production License
    Item
    Description
    Deliverable form
    Smart Setting Tuning Tool
    • Camera control software
    • Image tuning software

    ※ Not Including IQ Tuning Service

    Object code
    Deliverables Source / Object
    standard Object
    Item
    Description
    Deliverable form
    Drivers
    • Camera control software
    • Image tuning software

    ※ Not Including IQ Tuning Service

    ※ Not Including IQ Tuning ServiceNot Including IQ Tuning ServicNot Including IQ Tuning Servic

    Source code
    Deliverables SDK Software
    standard

Document

  • Item
    Description
    Deliverable form
    Deliverables
    Standard
    Schematic Data
    Schematic for EVB Board
    .pdf / .DSN
    PCB Data
    Allegro and Gerber Data
    .brd / .gbr
    BOM List
    BOM List for EVB Board
    .pdf
    PCB design Guideline
    BOM List for EVB Board
    .pdf
    Software Specification
    Specification of Software
    •API Document *1
    •Flow framework *2
    •Image processing document *2
    .pdf
    Hardware Specification
    •Specification of Hardware
    •EVB Manual
    .pdf
    Deliverables DVD or Download
    standard
Contact Us
Tel: +886-2-5559-9088 ext. 564/578
Email: snt-marcom-tw@ml.css.socionext.com
Send an email for your
chance to WIN PRIZES!
5 lucky winners will
be drawed from the
first 50 senders.
MB86H46 / MB86M25
MB86H46 / MB86M25

High Quality Video CODEC & Transcoder

Ultra-Compact Package Size with Embedded Memory

Industrial-Leading Power Efficiency

Rich design resource and design-partners in Worldwide

Scenario

・Broadcasting ・Broadcasting
・Lecture Recording ・Lecture Recording
・Medical Imaging ・Medical Imaging
・Intelligent video conference system ・Intelligent video conference system

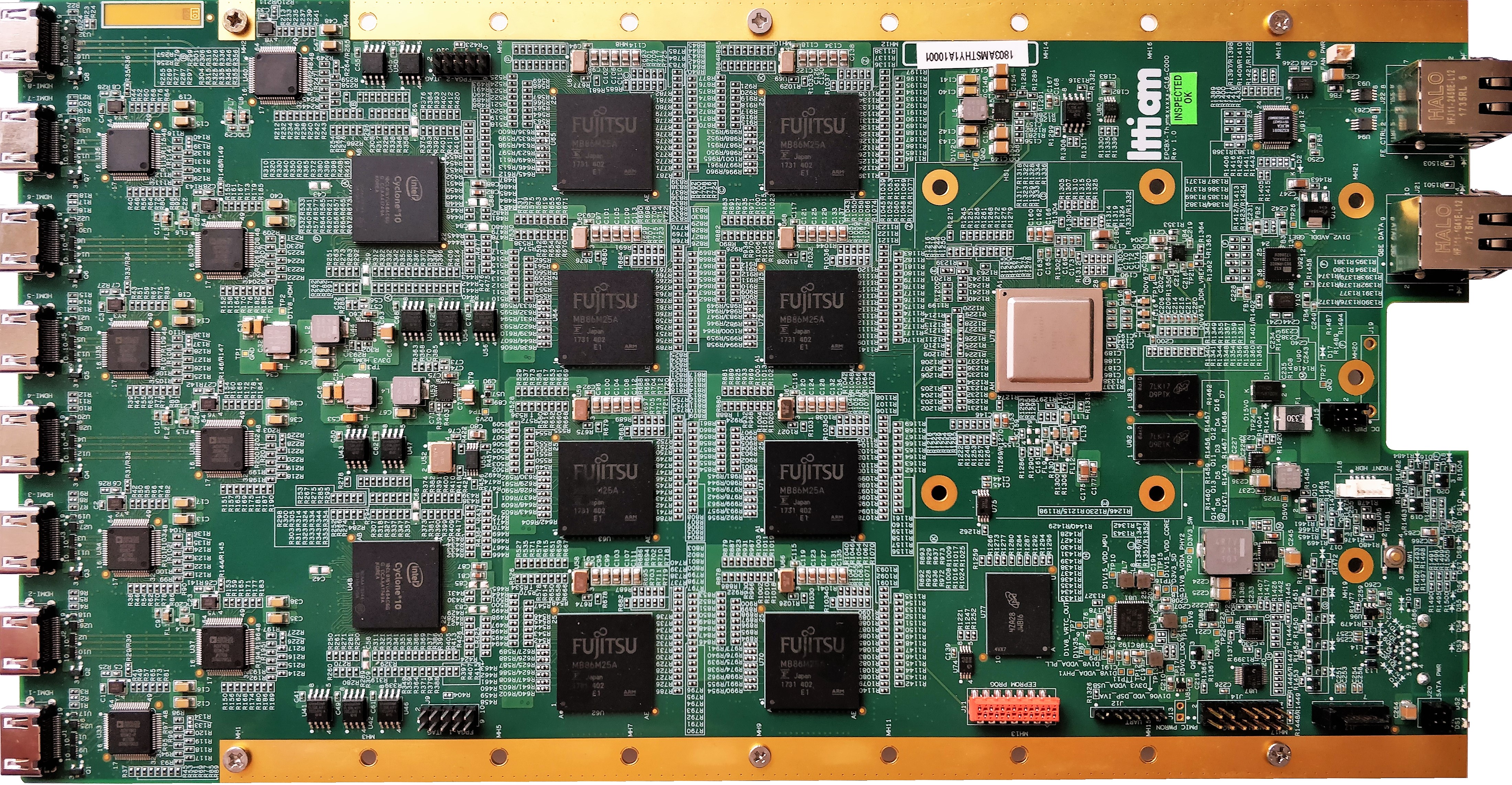

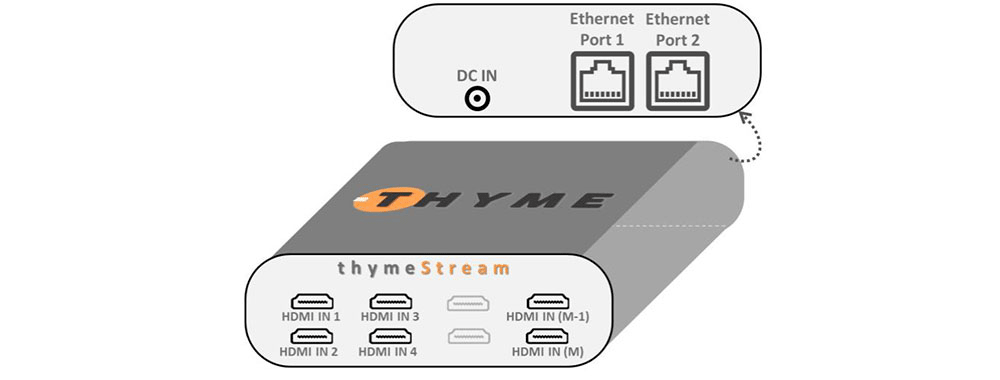

THYME - reference design of Socionext’s partnerittiam

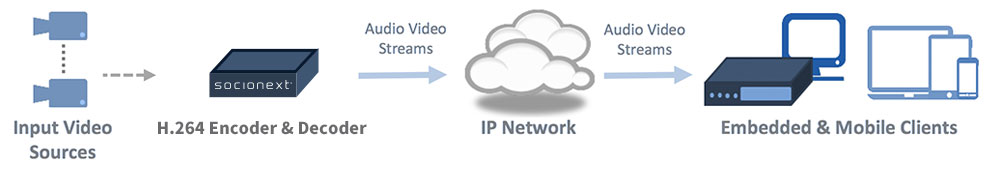

thymeStream is Ittiam’s off-the-shelf 8-channel encoder that offers high-quality Full-HD H.264 video streaming. It operates with up to 8 HDMI® inputs and delivers standard-compliant video streams over Gigabit Ethernet. This high-performance system is ideally suited for broadcast, enterprise and medical applications.

(Reference design－THYME)
（Mock-up concept）

VIDEO

  • Channel Density
    Up to 8-channels
  • Encode
    H.264
    HP Level 4.2, 4:2:0 8-bit, ISO/IEC 14496-10
  • Encode Resolutions
    1080i60/50, 1080p30/25, 720p60/50, 576i50, 480i59.94
  • Bit rate, GOP
    Up to 17 Mbps per channel, GOP: IPP, IBP, IBBP
  • Pre-processing
    Scaling, Interlacing, Logo Overlay (8-bit YUV 4:2:2)

AUDIO

  • Channel Density
    One stereo audio per video channel
  • Encode
    MPEG-1 Layer 2
    ISO / IEC 11172-3
    AAC-LC
    ISO/IEC 14496-3 and ISO/IEC 13818-7
  • Sampling Rate
    48 kHz, 16-bits per sample
  • Bit rate
    MPEG-1 Layer 2: 64, 96, 112, 128, 160, 192, 224, 256, 320, 384 Kbps
    AAC-LC: 64, 128, 192, 256, 384 kbps

STREAMING

  • Protocols
    MPEG-2 TS
    ISO/IEC 13818-1 (SPTS, MPTS)
    RTP
    RFC 3550/1, RFC 2250
  • Rate Control
    CBR, Constrained VBR
  • Modes
    Unicast, Multicast

NETWORK

  • Speed
    Gigabit Ethernet (1000 Mbps), Fast Ethernet (100Mbps)
  • IP Address
    DHCP, Static
  • Other Features
    ARP, ICMP

INTERFACES

  • Audio/Video inputs
    8x HDMI® v1.3, up to 1080p30/1080i60
    Embedded Stereo Audio
  • Data/Communication
    1x Gigabit Ethernet Port (RJ45 Connector) for Streaming
    1x Fast Ethernet Port (RJ45 Connector) for Control

MANAGEMENT

  • User Interface
    Over Fast Ethernet
  • Software update
    Field firmware upgrade

PHYSICAL

  • Power Input
    +15V DC
  • Power Consumption
    2.5 Watts per channel (1080i60)
  • Temperature
    0°C to +70°C (Storage)
    0°C to +40°C (Operating)
  • Dimensions (PCB)
    7.05” x 12.83” x 0.71 " (176.25 x 326.1 x 18 mm)

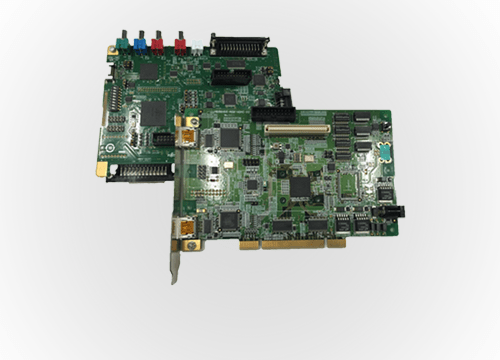

Reference design

MB86H46 Specification

MB86H46 is an ultra power-efficient ,highly-integrated Full HD H.264 CODEC chipset, with 700mW operational power consumption (including embedded DRAM).

  • Video
    • Profile
      H.264 High profile / Level 4.2 *1
    • Resoution
      1920 x 1080 x 60p/50p, 1920 x 1080 x60i/50i/30p/24p,
      1440 x 1080 x 60i/50i/30p/24p, 1280 x 720 x 60p/50p,
      720 x 480 x 60i, 720 x 576 x 50i
    • Interface
      SMPTE 274M/SMPTE296M-2001, ITU-R BT.656
  • Audio
    • Format
      Dolby® Digital (AC-3)*2, MPEG-2/4 AAC (LC profile), MPEG-1 Audio Layer 2, Linear PCM
    • Channels
      Max. 5.1ch*3
    • Interface
      I2S, S/PDIF
  • System
    • Deliverable form
      MPEG-2 TS, Video/Audio ES
    • Interface
      Stream(8bit parallel, Serial), PCI

      ※ Not Including IQ Tuning ServiceNot Including IQ Tuning ServicNot Including IQ Tuning Servic

  • Interface
    General 16-bit parallel, Serial (UART), PCI
  • Peripheral I/O
    SPI
  • Operating Frequency
    189MHz (internal memory interface only: 189MHz)
  • Power Consumption
    (including memory)
    850mW (typ., 1.2V, 1920x1080x60p at encoding)
    500mW (typ., 1.2V, 1920x1080x60i at encoding)
  • Package
    FBGA 650pin 15mm square SiP (Ball pitch 0.5mm)
  • Memory
    512Mbit FCRAM*4 x 1
  • *1: Support up to a maximum of 30Mbps bit rate.
  • *2: Dolby is a registered trademark of Dolby Laboratories.
  • *3: Number of channels depend on audio format.
  • *4: FCRAM is a trademark of Fujitsu Semiconductor Limited.

MB86M25 Specification

MB86M25 is a power-efficent, highly-integrated H.264/MPEG-2 transcode chipset. It supports HD/SD resolution H.264/MPEG-2 encode and transcode, with 1.2W operational power consumption (including embedded DRAM).

  • Video
    • Profile
      H.264 High profile, H.264 Main profile, H.264 Baseline profile, MPEG-2 Video Main profile
    • Resoution
      1920 x 1080 x60i/50i/30p/24p,
      1440 x 1080 x 60i/50i/30p/24p, 1280 x 720 x 60p/50p,
      720 x 480 x 60i, 720 x 576 x 50i
    • Interface
      SMPTE 274M/SMPTE296M-2001, ITU-R BT.656
  • Audio
    • Format
      Dolby® Digital (AC-3)*1, MPEG-2/4 AAC-LC/HE-AAC, MPEG-1 Audio Layer2
    • Channels
      Max. 5.1ch*2
    • Interface
      I2S
  • System
    • Deliverable form
      MPEG-2 TS, MP4
    • Interface
      USB2.0, PCI Express, Stream(8bit parallel, Serial) [2input, 3output]
  • Interface
    USB2.0, PCI Express, Serial(UART)
  • Peripheral I/O
    I2C, SPI
  • Operating Frequency
    27MHz
  • Power Consumption
    (including memory)
    1.2W (typ., 1.2V, H.264 HD to H.264 HD Transcoding)
  • Package
    FBGA 490pin 21mm square SiP (Ball pitch 0.8 mm)
  • Memory
    1Gbit FCRAM*3 ×1
  • *1: Dolby is a registered trademark of Dolby Laboratories.
  • *2: Number of channels depend on audio format.
  • *3: FCRAM is a trademark of Fujitsu Semiconductor Limited.
